Description
The Premier Smart Home System

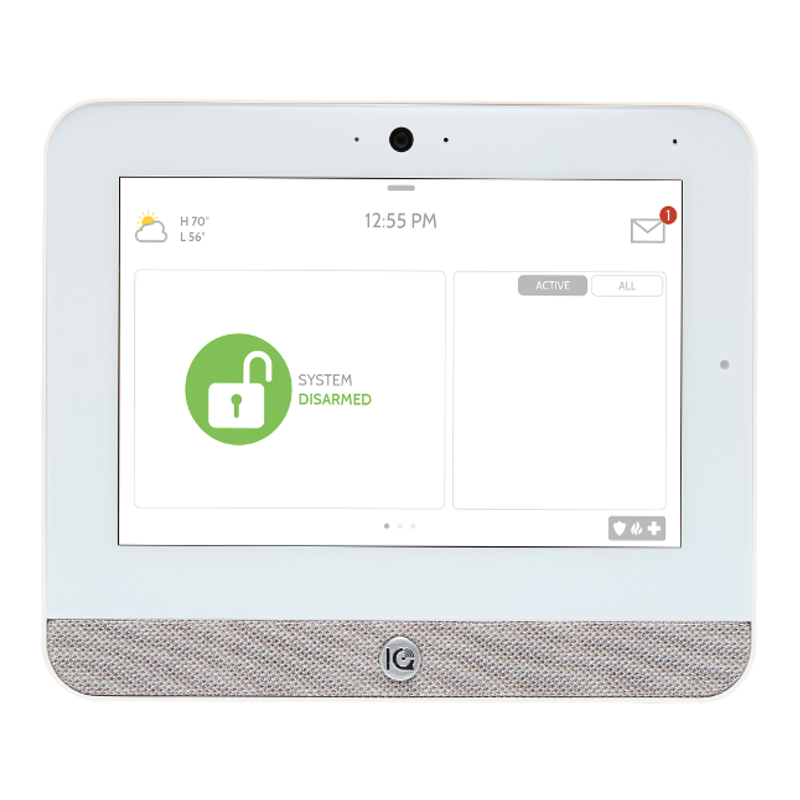

The IQ Panel 5 delivers improved performance in a totally refreshed package, sporting completely retooled internals and SRF modularity. Powered by a Qualcomm Dragonwing™ processor and boasting built-in PowerG +, the IQ Panel 5 is a highly tuned, future-ready panel built to last.
Delightfully easy to install and use
You’ll love the simple, yet powerful, interface on the IQ Panel’s high definition touch screen. With the IQ Panel, installing your own professional grade security system is a breeze.
Superior Modularity
Equipped with PowerG+ and the ability to add an optionial SRF daughtercard (sold separately) if you need it.
Why should I use encrypted sensors?
The majority of security systems are not as secure as they could be. With technology advancing rapidly, it’s becoming more and more likely that someone who wants to compromise your security system can do so without much effort or expense.
IQ encrypted sensors send signals in a coded form that can only be understood by the alarm system they are connected to. This ensures that only your system can access the content of the message, keeping your sensor activity data safe and practically eliminating your system’s exposure to spoofing and replay attacks.
Don’t worry, these devices integrate seamlessly
Surety is your connection to the award winning Alarm.com ecosystem, allowing you to use hundreds of best-in-class security and home automation devices from a single app that runs on almost anything. All that and the industry’s best customer service are why Surety is your home’s best friend.
IQ Panel Specs & Guides
- Manufacturer
- Qolsys
- Part numbers
- IQP5017, IQP5018
- LCD Touchscreen
- 7” LCD, Capacitive glass multi-touch 1280×800 pixels, 300 cd/m2, 24bit RBG
- Network
- Wi-Fi Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5Ghz – built-in access point capability Cellular LTE CAT4 (Bands 2/25, 4/66, 5/26, 7, 12/17, 13, 14 (non-First Net)
- Z-Wave
- 800-Series module, Z-Wave Long Range Up to 167 Devices
- PowerG Automation
- Up to 100 Devices
- PowerG+ Security
- Up to 128 Devices 915MHz, long range, secure encrypted two-way wireless
- Security RF
- Up to 128 Devices. Requires separate IQ Card either S-Line encrypted 319.5 MHz, 345MHz, or 433MHz
- Bluetooth
- Bluetooth Low Energy (BLE) 5.0 For Touchless Disarming
- Buttons
- Hard Button (Single wake/sleep button used for sleep/wake, hard reboot and clean screen cancel)
- Camera
- 13MP, Wide-Angle 120° Field-of-View, Fixed-Focus Lens with PortraitView
- Microphones
- 2 MEMS front-facing
- Speakers/Siren
- 2 Front-facing 4 watt speakers and 85dB piezo siren
- Partitions
- Up to 4 partitions
- User Codes
- Up to 242 users
- Power Supply
- AC/DC external plug-in adapter Output: 12vDC 1000mA CC Input: 100-240VAC 50/60Hz, barrel jack *Adapter evaluated at 120vAC for UL/cUL
- Battery
- 18650 – Rechargeable lithium-ion 3,000mAh, rated for over 24 hours
- Platform
- Android 14
- Processor
- Qualcomm DragonWing Quad Core SOM (System on a Module) with 32GB of NAND Flash
- Flash Memory
- Internal Storage, 32GB NAND Flash
- LED Indicator
- Status LED Green (Disarmed), Red (Armed), Triple full color RGB LED
- Tamper
- Dual panel and wall tamper switch with spring release
- Mount
- SmartMount wall mount included. SmartMount table stand sold sperately.
- Dimensions
- 6.1”H x7.5”W x 1”D (155mm x 191mm x 26mm)
- Weight
- 1 kg (2lb 4oz) *Packaged Weight
- Temperature
- Operational: 0°C to 49°C (32°F to 120°F), up to 93% relative humidity, indoor, dry ordinary locations use only
Product Guides
Plan Compatibility
| Alarm & Automation | |
|---|---|
| Alarm | Home |
| Cameras Only | |
|---|---|
| Cam | Cam Plus |
| Alarm, Automation & Cameras | |
|---|---|
| Protect | Complete |
Support
- What wireless sensors does the panel work with?
- The IQ Panel 5 works with DSC PowerG and PowerG+ sensors natively. Up to one optional radio (sold separately) for legacy sensors can be installed to incorporate 319.5MHz, 345MHz, or 433MHz.
