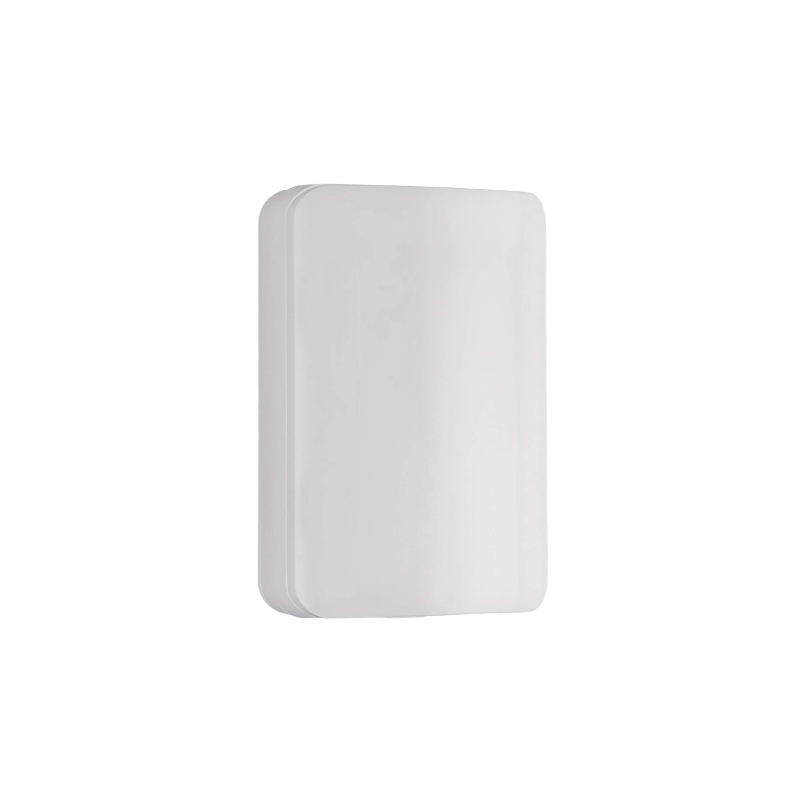

345S Sensors
The 2GIG 345S sensor line offers reliable security coverage for residential and commercial properties. All 345S sensors are compatible with the complete 2GIG security ecosystem, including the GC Touch, GC2, and 2GIG EDGE security panels. A key feature is the on-board switch for on/off selectable encryption to take advantge of encryption when applicable.
Specs & Guides
- Manufatcurer
- 2GIG
- Part Number
- 2GIG-PIR100-345
- Transmitter Frequency
- 345MHz
- Code Outputs:
- Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
- Supervisory Interval:
- 70 Minutes
- Sensor Type:
- Quad Element
- Pet Immunity:
- Up to 85 lbs (38 kg)
- Suggested Mounting Height:
- 7.5 ft. (2.3 m)
- Sensor Range:
- 30 ft. (9.1m) x 50 ft. (15.2 m)
- Horizontal Sensing Angle:
- 100° Maximum Spread
- Dimensions:
- (L x W x H) 3.53″ x 2.35″ x 1.63″ (5.4 x 6 x 4.1 cm)
- Weight:
- 3.5 oz (98 g)
- Operating Temperature:
- 32°-120° F (0°-49° C)
- Relative Humidity:
- 5% to 90%, Non-condensing
- Battery (Included):
- One CR 123A 3V or equivalent Lithium Battery
Plan Compatibility
| Alarm & Automation | ||
|---|---|---|
| Alarm | Home | |
| Cameras Only | ||
|---|---|---|
| Cam | Cam Pro | |
| Alarm, Automation & Cameras | |
|---|---|
| Protect | Complete |
Support
- Why isn’t my motion detector working?
- After motion has occurred the detector will go into sleep mode for several minutes before it will detect motion again in order to conserve battery life and avoid sending repeated alarm signals. Leave the room for 5 minutes and then try again.
